Preparar Windows Azure para Terraform

O Terraform sempre que aplica alguma alteração, salva esse estado num "backend" (ler mais sobre Terraform Backends), no nosso caso vamos configurar o Terraform para salvar os estados dentro do próprio Azure.

Documentação sobre Terraform Backend no Azure: https://developer.hashicorp.com/terraform/language/backend/azurerm

Para começar temos que configurar o Azure para aceitar operações vindas do Terraform, salvar os estados do Terraform e ter permissões para gerir os restantes recursos.

Comecei por criar o projecto Azure_and_Terraform_Initial_Setup onde existe um script create-storage-and-service-principal-for-terraform.sh que apenas lê como parametro qual é a Subscription ID, e cria:

  • Uma "Azure Storage Account" para salvar os "Terraform States" (Uma conta por ambiente de desenvolvimento)
  • Uma "App registrations" (por cada "environment") dentro do "Main Active Directory"
create-storage-and-service-principal-for-terraform.sh
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
#!/bin/bash

set -euo pipefail
trap 'echo "Error on line $LINENO"' ERR
echo ""

# Verify if the user is logged in
if ! az account show >/dev/null 2>&1; then
    echo "❌ You are not authenticated, please first execute 'az login'."
    exit 1
fi

# shellcheck disable=SC2034
declare -r AZURE_SUBSCRIPTION_PROD="49989ef6-876a-41d7-86ac-8c68cabc1199" # ID  # TODO(Rui): Hide this ID
# shellcheck disable=SC2034
declare -r AZURE_SUBSCRIPTION_STAGING="49989ef6-876a-41d7-86ac-8c68cabc1199"  # ID  # TODO(Rui): Hide this ID
# shellcheck disable=SC2034
declare -r AZURE_SUBSCRIPTION_DEV="49989ef6-876a-41d7-86ac-8c68cabc1199"  # ID  # TODO(Rui): Hide this ID

# If you delete someone from list, you need to delete manually from Azure:
declare -r ENV_LIST=("dEv" "StAgIng" "pRod")  # Case Insensitive

declare -r AZURE_LOCATION="westeurope"

echo "╔═════════════════════════════════════════════════════════════════════════════╗"

# Create resources and store resources info/keys in environment variables (for each environment [dev, prod, ...])
for ENV in "${ENV_LIST[@]}"
do
  # Convert ENV_LIST to upper and lower case variables:
  ENV=$(echo "${ENV}" | tr '[:upper:]' '[:lower:]')        # Convert ENV to lowercase
  ENV_UPCASE=$(echo "${ENV}" | tr '[:lower:]' '[:upper:]') # Convert ENV to uppercase

  eval AZURE_SUBSCRIPTION='$'"AZURE_SUBSCRIPTION_${ENV_UPCASE}"

  if ! az account show --subscription "${AZURE_SUBSCRIPTION}" &>/dev/null; then
    echo "Error: Subscription ${AZURE_SUBSCRIPTION} not found."
    echo "Available subscriptions:"
    az account list --output table
    exit 1
  fi
  az account set --subscription "${AZURE_SUBSCRIPTION}"

  echo " Environment: ${ENV}"
  echo " Using subscription ID:   '${AZURE_SUBSCRIPTION}'"
  echo " Using subscription NAME: '$(az account show --subscription "${AZURE_SUBSCRIPTION}" | jq -r '.name')'"
  echo ""
  sleep 5s

  az account set --subscription "${AZURE_SUBSCRIPTION}"

  echo "╠────────────────────────── TERRAFORM STATE STORAGE ──────────────────────────╣"

  RESOURCE_GROUP_NAME="terraform-state-${ENV}"
  # STORAGE_ACCOUNT_NAME="primetagterraform${ENV}"
  STORAGE_ACCOUNT_NAME="ptagterraform${ENV}"
  CONTAINER_NAME="terraform-state-${ENV}"

  # No problem if Resource Group already exists, it will return also 'Succeeded' status.
  echo "Creating Resource Group '${RESOURCE_GROUP_NAME}', in location '${AZURE_LOCATION}'..."
  az group create --name "${RESOURCE_GROUP_NAME}" --location "${AZURE_LOCATION}" --subscription "${AZURE_SUBSCRIPTION}"
  eval "RESOURCE_GROUP_NAME_${ENV_UPCASE}=${RESOURCE_GROUP_NAME}"

  # No problem if Storage Account already exists inside our subscription, it will return also 'Succeeded' status,
  # and the ACCOUNT_KEY will be the same.
  echo "Creating Storage Account '${STORAGE_ACCOUNT_NAME}'..."
  az storage account create --name "${STORAGE_ACCOUNT_NAME}" --resource-group "${RESOURCE_GROUP_NAME}" \
    --sku Standard_LRS --encryption-services blob --subscription "${AZURE_SUBSCRIPTION}"
  eval "STORAGE_ACCOUNT_NAME_${ENV_UPCASE}=${STORAGE_ACCOUNT_NAME}"

  echo "Getting storage account key..."
  ACCOUNT_KEY=$(az storage account keys list --resource-group "${RESOURCE_GROUP_NAME}" \
                --account-name "${STORAGE_ACCOUNT_NAME}" --subscription "${AZURE_SUBSCRIPTION}" \
                --query "[0].value" -o tsv)
  eval "ACCOUNT_KEY_${ENV_UPCASE}=${ACCOUNT_KEY}"

  # If "Storage Container" already exists, it will return success,
  # but it will return a JSON with value: "created": false
  echo "Creating Storage Container '${CONTAINER_NAME}'..."
  az storage container create --name "${CONTAINER_NAME}" --account-name "${STORAGE_ACCOUNT_NAME}" \
    --account-key "${ACCOUNT_KEY}" --subscription "${AZURE_SUBSCRIPTION}"
  eval "CONTAINER_NAME_${ENV_UPCASE}=${CONTAINER_NAME}"

  echo "╠────────────────────────────── APP PERMISSIONS ──────────────────────────────╣"

  APP_NAME="terraform-${ENV}"

  echo "Creating Azure Active Directory service principals for automation authentication '${APP_NAME}'..."
  # JSON_CREDENTIAL=$(az ad sp create-for-rbac --name "${APP_NAME}" --years 100)
  JSON_CREDENTIAL=$(az ad sp create-for-rbac --name "${APP_NAME}" --skip-assignment --years 100)
  eval "CREDENTIAL_APP_ID_${ENV_UPCASE}=$(echo "${JSON_CREDENTIAL}"   | jq --raw-output '.appId')"
  eval "CREDENTIAL_PASSWORD_${ENV_UPCASE}=$(echo "${JSON_CREDENTIAL}" | jq --raw-output '.password')"
  eval "CREDENTIAL_TENANT_${ENV_UPCASE}=$(echo "${JSON_CREDENTIAL}"   | jq --raw-output '.tenant')"

  eval APP_ID='$'"CREDENTIAL_APP_ID_${ENV_UPCASE}"

  : """
  If you don't have permissions to assign roles, the Add role assignment option will be disabled.
  To add or remove role assignments, you must have:
  Microsoft.Authorization/roleAssignments/write
  Microsoft.Authorization/roleAssignments/delete permissions, such as User Access Administrator or Owner
  Ensure you have these permissions.
  """
  # Roles: https://docs.microsoft.com/en-us/azure/role-based-access-control/built-in-roles#contributor
  echo "Assigning roles for app with NAME '${APP_NAME}'..."
  # az role assignment create --assignee "${APP_ID}" --role "Owner"  # Owner is the most powerful role, should we use it? Or is too risky?
  az role assignment create --assignee "${APP_ID}" --scope "/subscriptions/${AZURE_SUBSCRIPTION}/resourceGroups/${RESOURCE_GROUP_NAME}" --role "Contributor"
  az role assignment create --assignee "${APP_ID}" --scope "/subscriptions/${AZURE_SUBSCRIPTION}/resourceGroups/${RESOURCE_GROUP_NAME}" --role "Network Contributor"
  # az role assignment create --assignee "${APP_ID}" --scope "/subscriptions/${AZURE_SUBSCRIPTION}/resourceGroups/${RESOURCE_GROUP_NAME}" --role "User Access Administrator"  # To allow "azurerm_management_lock"
  az role assignment create --assignee "${APP_ID}" --scope "/subscriptions/${AZURE_SUBSCRIPTION}" --role "User Access Administrator"  # To allow "azurerm_management_lock" outside the terraform state resource group (To avoid this kind of errors: https://gitlab.com/primetag/infrastructure/databases-postgresql-9/-/jobs/11012316267 )
  # az role assignment create --assignee 00000000-0000-0000-0000-000000000000 --role "Storage Account Key Operator Service Role" --scope $id

  echo ""
done
echo "╚═════════════════════════════════════════════════════════════════════════════╝"

echo ""
echo ""

# Print resources info/keys for each environment
echo "╔═════════════════════════════════════════════════════════════════════════════╗"
for ENV in "${ENV_LIST[@]}"
do
  ENV=$(echo "${ENV}" | tr '[:upper:]' '[:lower:]')        # Convert ENV to lowercase
  ENV_UPCASE=$(echo "${ENV}" | tr '[:lower:]' '[:upper:]') # Convert ENV to uppercase

  eval AZURE_SUBSCRIPTION='$'"AZURE_SUBSCRIPTION_${ENV_UPCASE}"
  eval ACCOUNT_KEY='$'"ACCOUNT_KEY_${ENV_UPCASE}"
  eval RESOURCE_GROUP_NAME='$'"RESOURCE_GROUP_NAME_${ENV_UPCASE}"
  eval STORAGE_ACCOUNT_NAME='$'"STORAGE_ACCOUNT_NAME_${ENV_UPCASE}"
  eval CONTAINER_NAME='$'"CONTAINER_NAME_${ENV_UPCASE}"

  eval CREDENTIAL_APP_ID='$'"CREDENTIAL_APP_ID_${ENV_UPCASE}"
  eval CREDENTIAL_PASSWORD='$'"CREDENTIAL_PASSWORD_${ENV_UPCASE}"
  eval CREDENTIAL_TENANT='$'"CREDENTIAL_TENANT_${ENV_UPCASE}"

  echo "ENVIRONMENT: ${ENV}"
  echo "AZURE_SUBSCRIPTION_${ENV_UPCASE}: ${AZURE_SUBSCRIPTION}"
  echo "                         ""$(az account show --subscription "${AZURE_SUBSCRIPTION}" | jq -r '.name')"
  echo "# Storage:"
  echo "RESOURCE_GROUP_NAME_${ENV_UPCASE}: ${RESOURCE_GROUP_NAME}"
  echo "STORAGE_ACCOUNT_NAME_${ENV_UPCASE}: ${STORAGE_ACCOUNT_NAME}"
  echo "CONTAINER_NAME_${ENV_UPCASE}: ${CONTAINER_NAME}"
  echo "ACCOUNT_KEY_${ENV_UPCASE}: ${ACCOUNT_KEY}"
  echo "# Service Principal:"
  echo "CREDENTIAL_APP_ID_${ENV_UPCASE}: ${CREDENTIAL_APP_ID}"
  echo "CREDENTIAL_PASSWORD_${ENV_UPCASE}: ${CREDENTIAL_PASSWORD} [🚨 PROTECT THIS SECRET]"
  echo "CREDENTIAL_TENANT_${ENV_UPCASE}: ${CREDENTIAL_TENANT}"
  echo ""
done
echo "╚═════════════════════════════════════════════════════════════════════════════╝"



Em caso de erro SubscriptionNotFound

Se surgir a seguinte mensagem de erro:

(SubscriptionNotFound) Subscription xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx was not found.
Code: SubscriptionNotFound
Message: Subscription xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx was not found.

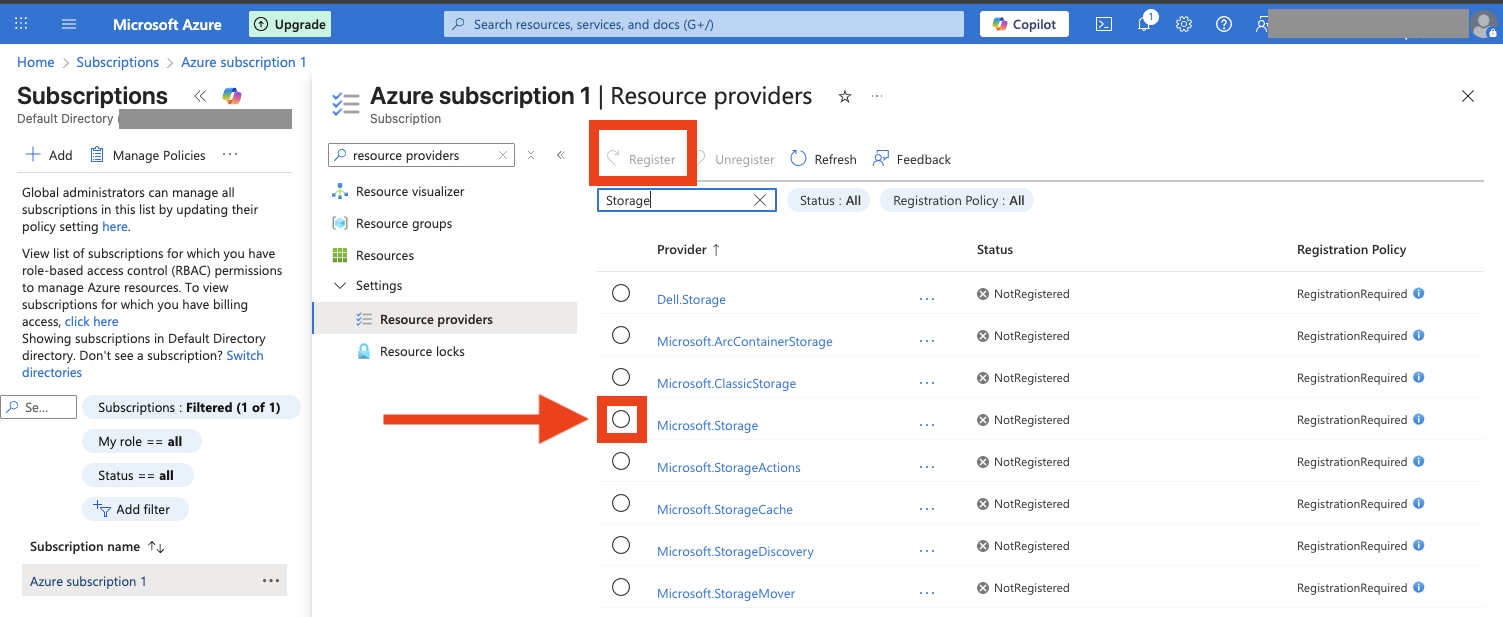

É preciso ir à subscrição, "settings", "Resource providers" e ativar o recurso Microsoft.Storage EnableAzureStorage.png

O script no final imprime os secrets que devem ser salvos:

╔═════════════════════════════════════════════════════════════════════════════╗
ENVIRONMENT: dev
AZURE_SUBSCRIPTION_DEV: 49989ef6-876a-41d7-86ac-8c68cabc1199
                         Azure subscription 1
# Storage:
RESOURCE_GROUP_NAME_DEV: terraform-state-dev
STORAGE_ACCOUNT_NAME_DEV: ptagterraformdev
CONTAINER_NAME_DEV: terraform-state-dev
ACCOUNT_KEY_DEV: dvJCApXtvJvut3vGKozxtzIrx0ntUMVCN6omw+/KAFdkiFu2FTBP61CzHbLqeaYYzEX0vdrbsrJD+AStUGyODA==
# Service Principal:
CREDENTIAL_APP_ID_DEV: d0f26b5a-2476-46f2-92fa-b860ca759231
CREDENTIAL_PASSWORD_DEV: bOb8Q~HNWfGbIPOszZxkQL8i6PpdPx_QyGPTJbmi [🚨 PROTECT THIS SECRET]
CREDENTIAL_TENANT_DEV: b583bbfe-2844-4fd1-90bc-811774b2da82

ENVIRONMENT: staging
AZURE_SUBSCRIPTION_STAGING: 49989ef6-876a-41d7-86ac-8c68cabc1199
                         Azure subscription 1
# Storage:
RESOURCE_GROUP_NAME_STAGING: terraform-state-staging
STORAGE_ACCOUNT_NAME_STAGING: ptagterraformstaging
CONTAINER_NAME_STAGING: terraform-state-staging
ACCOUNT_KEY_STAGING: H6gA5/l2PkuWprLiCF66nMiHWG9OLIH6Mt/4GritcPsJANuAiDWOO5/jv5Skd52C1dIh5oAktLkY+AStbhqGMA==
# Service Principal:
CREDENTIAL_APP_ID_STAGING: 217ce306-a83e-41c4-9b28-f2d3848dbb41
CREDENTIAL_PASSWORD_STAGING: fA_8Q~gbCg~cZhqPzI1gSgrsxV~BdIIeevk~4cTa [🚨 PROTECT THIS SECRET]
CREDENTIAL_TENANT_STAGING: b583bbfe-2844-4fd1-90bc-811774b2da82

ENVIRONMENT: prod
AZURE_SUBSCRIPTION_PROD: 49989ef6-876a-41d7-86ac-8c68cabc1199
                         Azure subscription 1
# Storage:
RESOURCE_GROUP_NAME_PROD: terraform-state-prod
STORAGE_ACCOUNT_NAME_PROD: ptagterraformprod
CONTAINER_NAME_PROD: terraform-state-prod
ACCOUNT_KEY_PROD: rihATlim+xtqqlFJAApIfX868D0DddggJnDsJOnPL53k2d0esyZe99BAjshYkAYP7UvnuNqiMgPG+ASteiUmFQ==
# Service Principal:
CREDENTIAL_APP_ID_PROD: 74140999-7e3f-47b2-a166-7ed14b4f594b
CREDENTIAL_PASSWORD_PROD: HZ68Q~KzpnEUZVhgb6jhKyQr4Td1SIKmWDNIObkI [🚨 PROTECT THIS SECRET]
CREDENTIAL_TENANT_PROD: b583bbfe-2844-4fd1-90bc-811774b2da82

╚═════════════════════════════════════════════════════════════════════════════╝
(Convem automatizares o processo de rotação destes secrets que estão dentro das Registered Apps)

Após executar o script teremos:

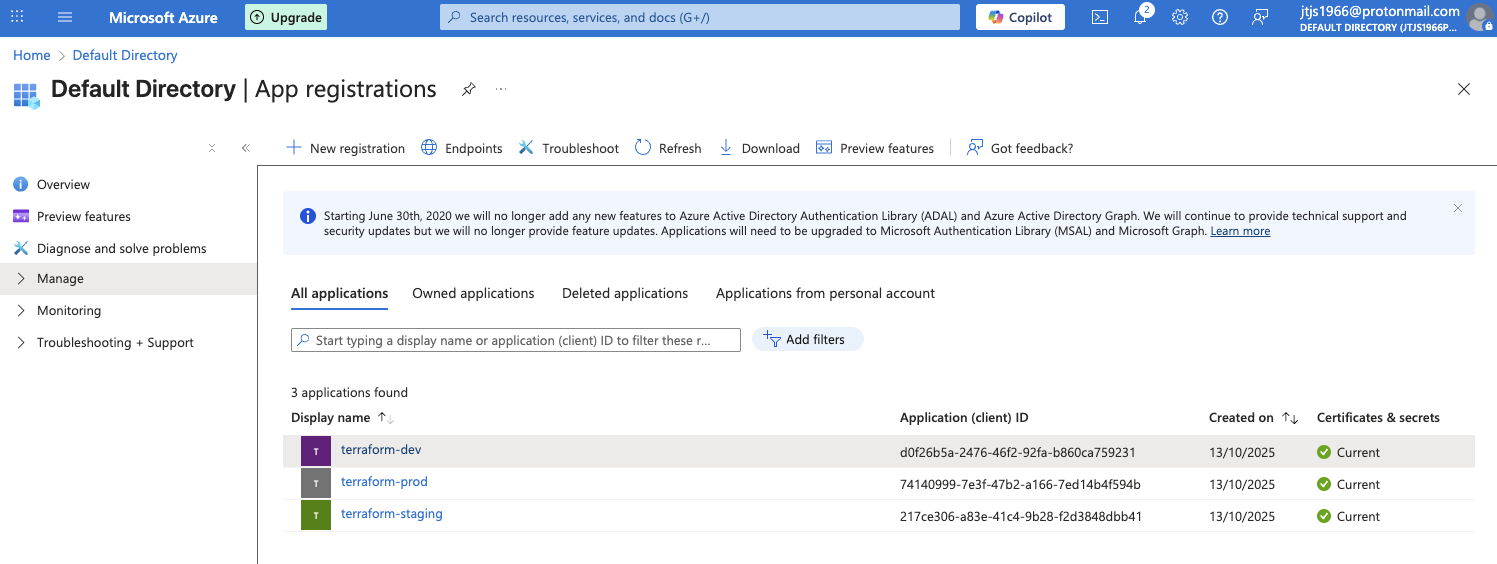

  • As app registrations: Serão usadas para permitir que o Terraform controle o Azure az-app-registrations.png

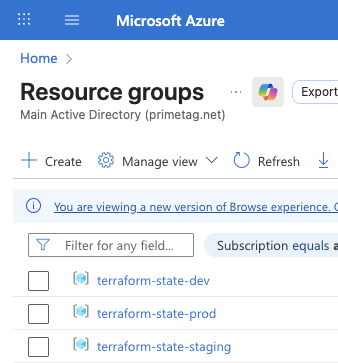

  • Os resource groups para o terraform, com os respectivos service accounts dentro: Será dentro destas service accounts que o Azure salvará os "states" que for aplicando az-resource-groups.png az-service-accounts.png

Este Azure_and_Terraform_Initial_Setup contem outros ficheiros de configuração, mas não são relevantes neste momento, serão discutidos num proximo capitulo
